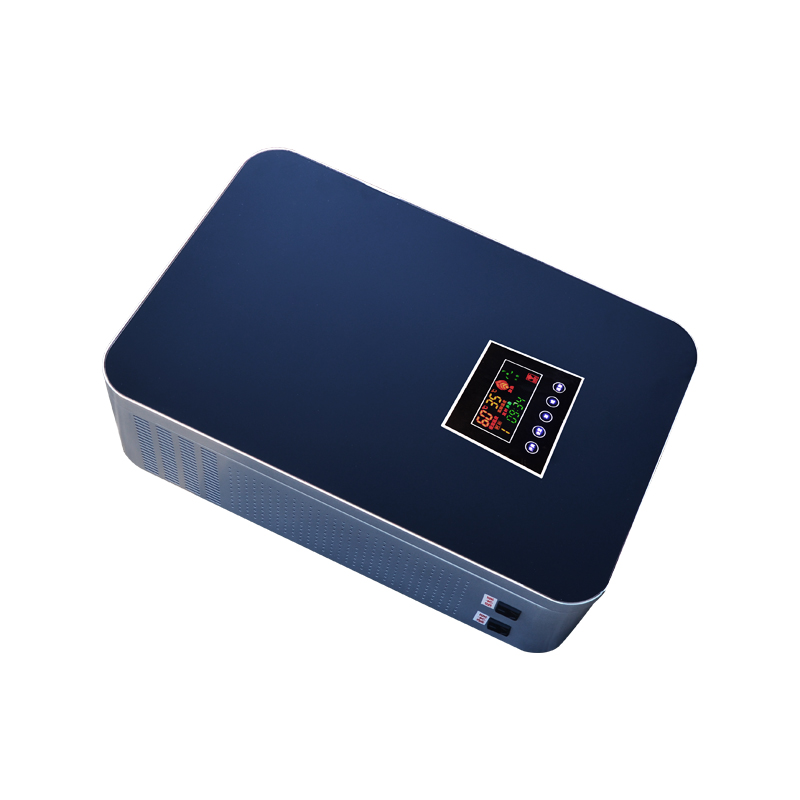

Wall-mounted Lnduction Heating Water Boiler
1﹜ Working principle
The Wall-mounted Lnduction Heating Water Boiler uses the principle of electromagnetic induction to generate eddy currents on the internal coils of the water heater, thereby rapidly heating the water in the water heater. Compared with traditional water heaters, this heating method has higher heating efficiency and can save energy and electricity costs.
2﹜ Characteristic advantages
Efficient heating: Wall-mounted Lnduction Heating Water Boiler have extremely high heating efficiency, usually reaching over 95%, allowing users to enjoy hot water faster.
Safe and reliable: Compared with traditional water heaters, Wall-mounted Lnduction Heating Water Boiler use electromagnetic induction heating, avoiding direct contact between electric heating elements and water, thereby reducing the risk of leakage and improving usage safety.
Energy conservation and environmental protection: Wall-mounted Lnduction Heating Water Boiler can more effectively utilize electricity, saving about 30% of electricity costs compared to traditional water heaters, while reducing exhaust emissions, which is beneficial for environmental protection.
Easy installation: The wall mounted electromagnetic heating water heater adopts a wall mounted installation method, which is simple and convenient to install, saves space, and is suitable for various home environments.
3﹜ Application scenarios
Wall-mounted Lnduction Heating Water Boiler are suitable for household use, especially in places that require hot water such as kitchens and bathrooms. It can quickly provide hot water to meet the water needs of users.
Rated power: 3.5-8kw
Rated voltage and frequency: 220V
Voltage adaptation range: 220V ㊣ 20%
Applicable ambient temperature: - 20 ~ 40 ∼ C
Applicable ambient humidity: ≒ 95%
Power regulation range: 20 ~ 100%
Heat conversion efficiency: ≡ 90%
Effective power: 3.5-8kw
Operating frequency: 5 ~ 40KHz
Features of 17勛圖 3.5/5/8/10kw frequency conversion electromagnetic heating furnace:
1﹜ The principle of frequency conversion induction heating and separation of water and electricity are adopted to solve the safety problem.
2﹜ The water is magnetized after induction heating, which greatly reduces the scale.
3﹜ The coil heater adopts superconducting magnetic material ferrite, which greatly improves the heat conversion rate.
4﹜ The induction heating body is not easy to leak water and leakage, and its service life is more than 20 years.
5﹜ Fast temperature rise and high thermal efficiency.
6﹜ It has a durable circulating water pump imported from Germany to realize the return water cooling host, which can be put in the bedroom.
7﹜ Touch control, with remote control function, do whatever you want.
8﹜ Power off memory and automatically resume normal operation.
9﹜ It can be used for heating, bathing and domestic water at the same time.
10﹜ With beautiful appearance and wall mounted installation, it can provide heating for 80-100 square meters of residential building area. It is a product in response to the national call for coal to electricity.
